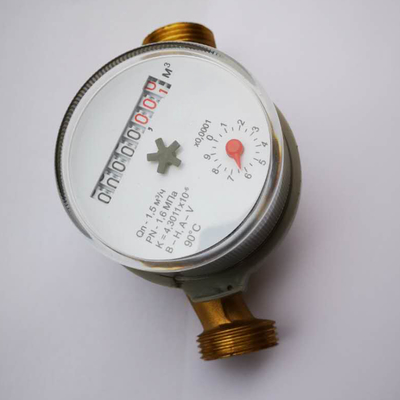

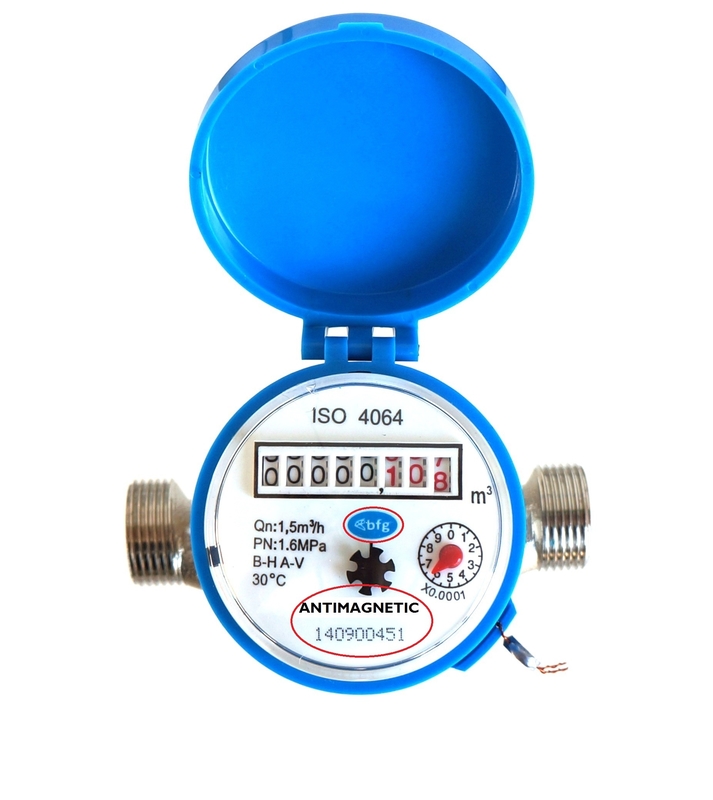

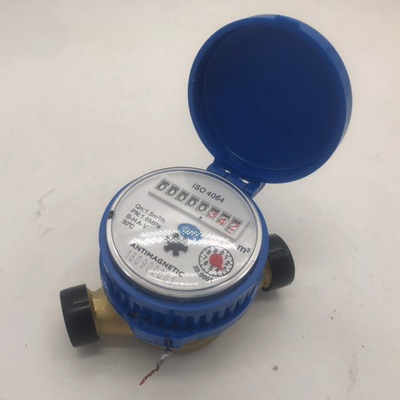

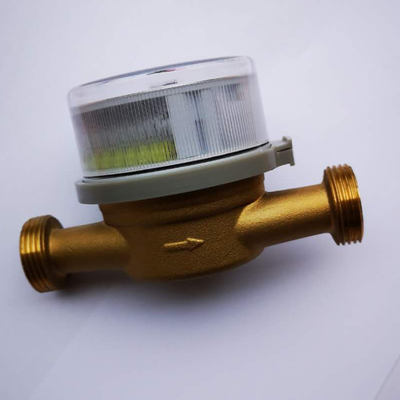

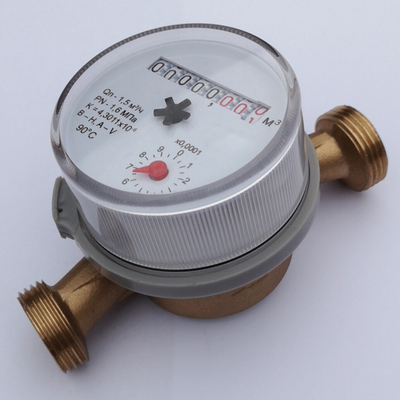

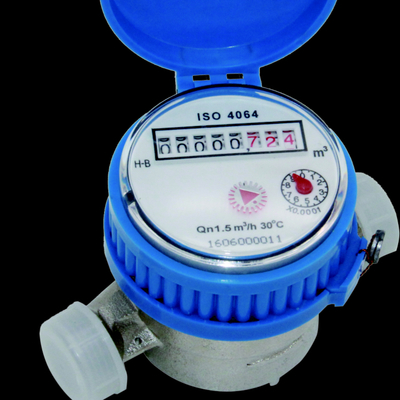

DN15 Impulse Single Jet Brass Water Meter

 Single jet Dry type cold water meter (LXSG-15D)

Feature:

1.This type water meter with the characters of small in size,light in weight,good look design,easy reading and etc.

2.The meters conform to ISO4064 standard class B.

3. Dry register and register with 5 or 8 number roller.

4. Brass body or plastic body, for optional

5. Counter type: wet type and magnetic drive dry type

6. The dry type counter can be rotated in 360 angle, keep a clear reading in a long term service and magnetic interference.

7.Brass body or stainless steel body for optional.

Working condition(s):

Water temperature 0.1~30℃, working pressure≤1MPa.

Figurative diagram:

Shape dimension & weight:

Main technical parameters & measurement range:

Indication allowable error:

Low region max. allowable error:

From Q min inclusive up to but excluding Qt is±5%.

High region max. allowable error:

From Qt inclusive up to and including Q max is±2%.

Pressure Loss Curve
