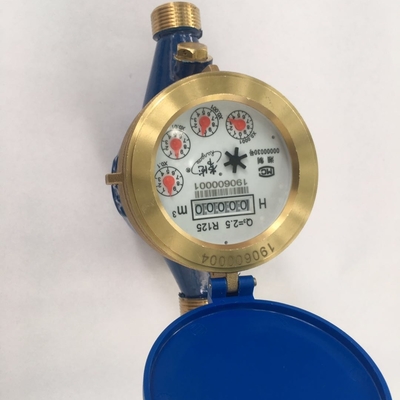

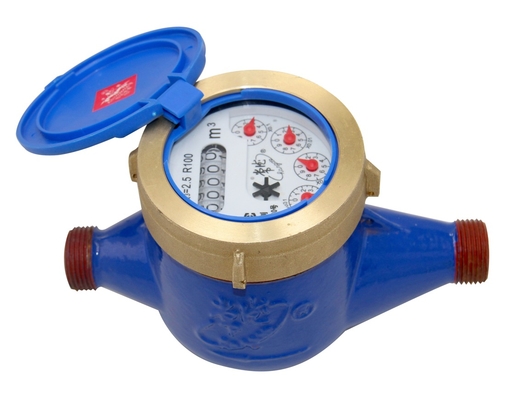

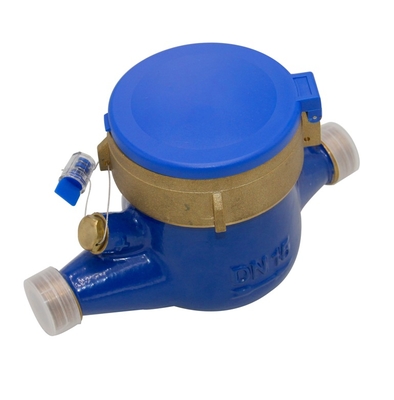

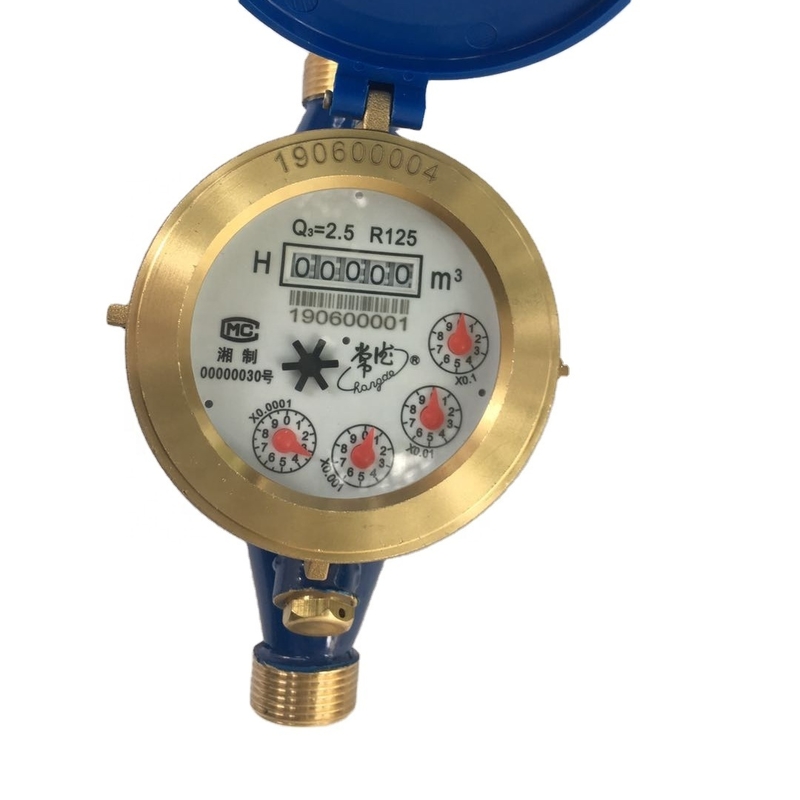

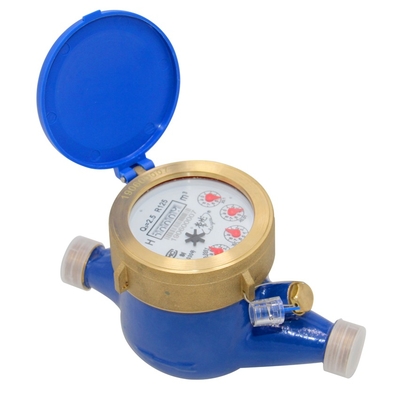

Name: DN 15 -50 Multi-jet Dry Dial Class B/Class C Meter for Cold and Hot Water
Brand: Hunan Changde Water Meter Manufacture Co., Ltd.
SKU: LXSG-15-50
Availability: InStock

Home Products Multi jet water meter

DN 15 -50 Multi-jet Dry Dial Class B/Class C Meter for Cold and Hot Water

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Changde Brand
Model Number:	LXSG-15-50

Contact Now

Detailed Product Description

Warranty:	1YEAR, 1 Year	Customized Support:	OEM
Type:	Multi-jet Meters	Name:	Dry Dial Class B/C Water Meter
Material:	Brass	Type Name:	Vane Wheel Cold Water Meter
Certificate:	ISO4064 ISO9001:2008	Installation:	Horizontal
Water Temperature:	≤30℃	Working Pressure:	≤1MPa
Normal Size:	15mm~25mm

DN 15 -50 Multi-jet dry dial class B/Class C meter for cold and hot water

Product Features

1 High accuracy, Dry type, magnetic drive

2 dry counter and measured water can keep the indication clear for a long time.

3 Pulse output option

Working condition(s)

Water temperature T30(T50 available), Working pressure ≤1MPa.(1.6Mpa available)

Accuracy

Low region max. allowable error: From Q1 inclusive up to but excluding Q2 is±5%.

High region max. allowable error: From Q2 inclusive up to and including Q4 is±2%

Dimensions and weight

Technical Data

Diameter (DN)	Q max (Q₄)	Q n (Q₃)	Qt(Q₂) Q₂/Q₁=1.6 m³/h				Q min(Q₁) Specific value Q₃/Q₁ m³/h				Min. seale mark	Max.reading
Diameter (DN)	Q₄/Q₃=1.25 m³/h		R80	R100	R125	R160	R80	R100	R125	R160	m³	m³
15	3.125	2.5	0.05	0.04	0.032	0.025	0.032	0.025	0.02	0.016	0.00005	99999
20	5	4	0.08	0.064	0.05	0.04	0.05	0.04	0.032	0.025	0.00005	99999
25	7.875	6.3	0.126	0.1	0.08	0.063	0.08	0.063	0.5	0.4	0.00005	99999
32	12.5	10	0.2	0.16	0.125	0.1	0.125	0.1	0.08	0.063	0.00005	99999
40	20	16	0.32	0.256	0.2048	0.16	0.2	0.16	0.128	0.1	0.00005	99999
50	31.25	25	0.5	0.4	0.32	0.25	0.3125	0.25	0.2	0.156	0.00005	99999
