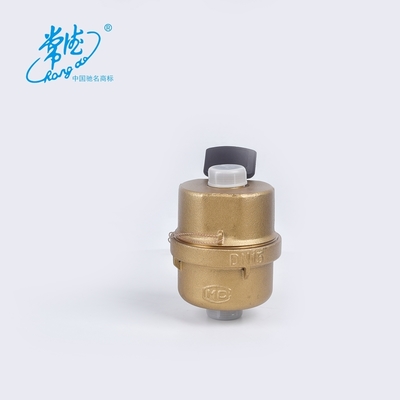

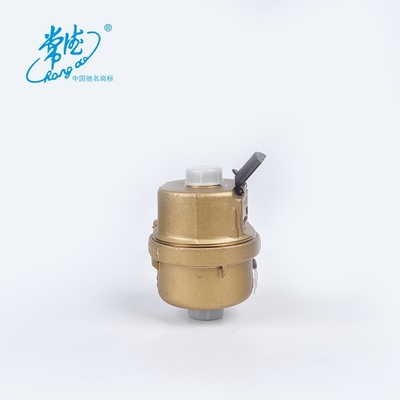

DN15 DN20 Volumetric Brass Cold Water Meter R160

DN15 DN20 Volumetric Brass Cold Water Meter R160

  • DN15 DN20 Volumetric Brass Cold Water Meter R160
  • DN15 DN20 Volumetric Brass Cold Water Meter R160
  • DN15 DN20 Volumetric Brass Cold Water Meter R160
  • DN15 DN20 Volumetric Brass Cold Water Meter R160
  • DN15 DN20 Volumetric Brass Cold Water Meter R160
  • DN15 DN20 Volumetric Brass Cold Water Meter R160
DN15 DN20 Volumetric Brass Cold Water Meter R160
Product Details:
Place of Origin: Hunan, China
Brand Name: Changde
Model Number: LXH15~20
Contact Now
Detailed Product Description
Warranty: 1 Year, 1 Year Customized Support: OEM
Product Name: Volumetric Brass Cold Water Meter R160 Certificate: ISO4064, ISO9001:2015
Installation: Any Position Water Temperature: ≤30℃
Working Pressure: ≤1.6MPa Normal Size: 15mm~20mm
Color: Blue, Gold Model: LXH-15,LXH-20
Type: Volumetric Water Meter

DN15 DN20 Volumetric Brass Cold Water Meter R160 0

Technical Data

Brief introduction:

The volumetric water meter is mainly composed of a meter case, a counting mechanism, a piston metering mechanism, etc. The counting mechanism adopts the form of liquid seal, and the reading part of the word wheel is sealed with the anti-corrosive liquid and keeps the reading part clear for a long time, separated from the use of water.Sealing liquid has the characteristics of anti-freezing, anti-fog, anti-fouling and so on.



Characteristic:

With piston metering structure, the metering of water meter is more accurate, the starting flow rate is 3-4L/H,  measuring range is more wider, R160.Horizontal, vertical optional installation.



Working condition(s):

Water temperature 0.1~30℃, working pressure≤1MPa.



Figurative diagram:

DN15 DN20 Volumetric Brass Cold Water Meter R160 2

 DN15 DN20 Volumetric Brass Cold Water Meter R160 4

DN15 DN20 Volumetric Brass Cold Water Meter R160 6






Allowable error of indication & error Curve:

From Q1 inclusive up to but excluding Q2 is ± 5%;

From Q2 inclusive up to and including Q4 is ± 2%;

 DN15 DN20 Volumetric Brass Cold Water Meter R160 8DN15 DN20 Volumetric Brass Cold Water Meter R160 10



 DN15 DN20 Volumetric Brass Cold Water Meter R160 12

 DN15 DN20 Volumetric Brass Cold Water Meter R160 14DN15 DN20 Volumetric Brass Cold Water Meter R160 16DN15 DN20 Volumetric Brass Cold Water Meter R160 18DN15 DN20 Volumetric Brass Cold Water Meter R160 20DN15 DN20 Volumetric Brass Cold Water Meter R160 22DN15 DN20 Volumetric Brass Cold Water Meter R160 24DN15 DN20 Volumetric Brass Cold Water Meter R160 26
