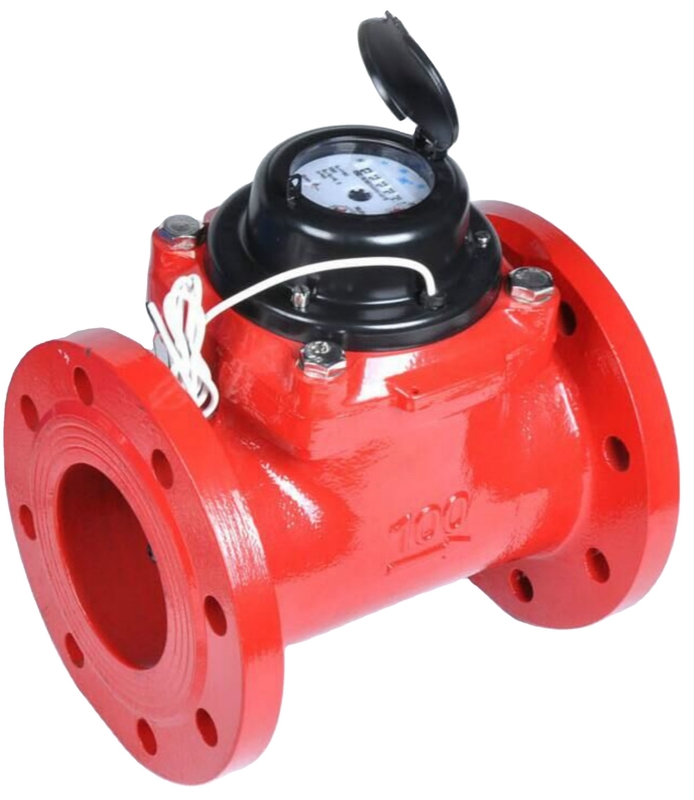

Customizable Large Caliber Horizontal Hot Water Flow Meters Wet Type with Woltman Horizontal Flange Connection OEM Product

Customizable Large Caliber Horizontal Hot Water Flow Meters Wet Type with Woltman Horizontal Flange Connection OEM Product

  • Customizable Large Caliber Horizontal Hot Water Flow Meters Wet Type with Woltman Horizontal Flange Connection OEM Product
  • Customizable Large Caliber Horizontal Hot Water Flow Meters Wet Type with Woltman Horizontal Flange Connection OEM Product
  • Customizable Large Caliber Horizontal Hot Water Flow Meters Wet Type with Woltman Horizontal Flange Connection OEM Product
  • Customizable Large Caliber Horizontal Hot Water Flow Meters Wet Type with Woltman Horizontal Flange Connection OEM Product
  • Customizable Large Caliber Horizontal Hot Water Flow Meters Wet Type with Woltman Horizontal Flange Connection OEM Product
  • Customizable Large Caliber Horizontal Hot Water Flow Meters Wet Type with Woltman Horizontal Flange Connection OEM Product
Customizable Large Caliber Horizontal Hot Water Flow Meters Wet Type with Woltman Horizontal Flange Connection OEM Product
Product Details:
Place of Origin: Hunan, China
Brand Name: Changde
Model Number: LXLR-80~200
Contact Now
Detailed Product Description
Warranty: 1 YEAR, 1 Year Customized Support: OEM, ODM
Type: WOLTMANN WATER METER Name: Large Caliber Water Meters
Material: Ductile Cast Iron Type Name: Horizontal Wet Type Hot Water Meter
Certificate: ISO4064 ISO9001:2008 Installation: Horizontal
Water Temperature: ≤90℃ Working Pressure: ≤1MPa
Normal Size: 80mm~200mm

Wet type large caliber water meters flange connection woltman horizontal hot water flow meters

Customizable Large Caliber Horizontal Hot Water Flow Meters Wet Type with Woltman Horizontal Flange Connection OEM Product 0



Product Description

Special Features

Name:

large caliber water meters

Material:

Iron

Type name

Horizontal Removeable Dry type Hot water meter

Certificate

ISO4064 ISO9001:2008

warranty

 1 year

Installation

Horizontal

Water temperature

≤90

Working pressure

≤1MPa

Normal Size

80mm~200mm



Hot water meter is mainly composed of a meter case, a cover, a mechanism counting, a metering mechanism. The counting mechanism adopts the form of liquid seal, water on the surface of semi-liquid sealed water meter, the reading part of the wheel is sealed with the anti-corrosive liquid and separated from the use of water for a long time to keep the reading part clear. The sealing liquid has the characteristics of anti-freezing, anti-fog and anti-fouling, etc..

Characteristic:

Wide measuring range, accurate measurement, large circulation capacity, small pressure loss, technical index up to GB/T778.1~3-2007 standard, strong structure. Long service life, The separation energy of liquid seal series counter and measured water can keep the indication clear for a long time, High quality anti-corrosion and anti-fouling material used for parts in contact with water, DN50 and above use flange connection (iron shell).



The interchangeable, removable measuring mechanism can be easy removed from the body for checking, maintaining and replacing, no needs to dismantle the body form the pipe;



Working condition(s):

Water temperature 0~90℃, working pressure ≤1MPa.
