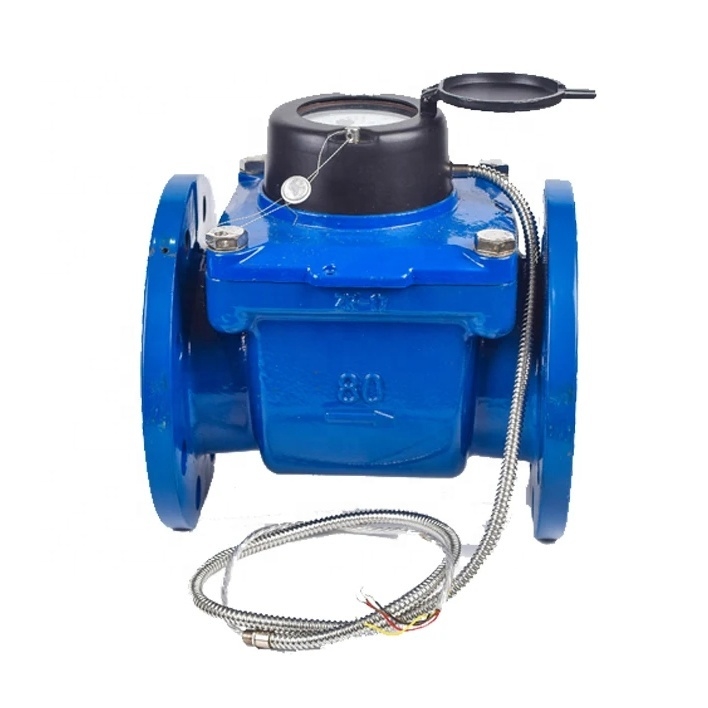

Name: RS485 Modbus Water Meter Cast Iron Brass Body Dry Type Woltmann Type Manufactured OEM Customization Horizontal Installation
Brand: Hunan Changde Water Meter Manufacture Co., Ltd.
SKU: LXSD-15G~25G
Availability: InStock

Home Products Smart water meter

RS485 Modbus Water Meter Cast Iron Brass Body Dry Type Woltmann Type Manufactured OEM Customization Horizontal Installation

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Changde
Model Number:	LXSD-15G~25G

Contact Now

Detailed Product Description

Warranty:	1 Year, 1 Year	Customized Support:	OEM, ODM
Type:	Multi-jet Meters	Material:	Cast Iron
Name:	RS485 Modbus Water Meter	Material:	Cast Iron,brass
Type Name:	Photoelectric Direct Reading Remote Reading Water Meter	Certificate:	ISO4064 ISO9001:2008
Installation:	Horizontal	Water Temperature:	≤30℃
Working Pressure:	≤1MPa	Normal Size:	15mm~32mm

water flow meter portable RS485 modbus water meter

Product Features:

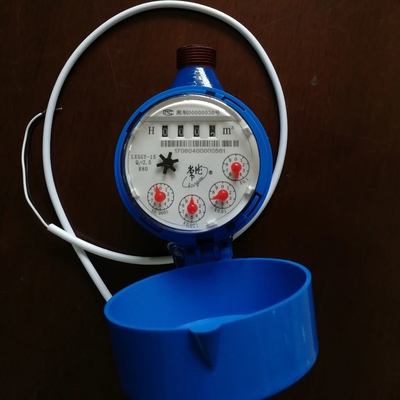

Adopt 4-bit Wheel Direct Reading method, read value directly, no cumulative error.

M-Communication interface:bus/ RS485 Protocol:CJ/T188-2004/ DL/T645-2007/Mod-bus

N-No built-in battery, in normal times no need to add electricity

Dust-proof and moisture-proof of electronic device housing is IP65, electronic devices is up to IP68

Support remote reading

Working condition(s):

Water temperature 0.1~30℃, Working pressure ≤1MPa.

Shape & Size:

Product model	Diameter	L1	L2	L3	H	W	D
LXSGY	DN15	165	255	14	130	85	R1/2″
	DN20	195	295	16	130	85	R3/4″
	DN25	225	345	18	137	95	R1″
	DN32	354	230	101	150	104	R1-1/4

Main Technical Data :

Diameter(DN)mm	15		20		25
Overload flow rate (Q4)m³/h	3.125		5		7.785
Normal flow rate (Q3)m³/h	2.5		4		6.3
Transitional flow rate (Q2)m³/h	0.05 0.04		0.08 0.064		0.126 0.1
Min. flow rate (Q1)m³/h	0.032 0.025		0.05 0.04		0.078 0.063
Measure Range(Q3/Q1)		80/100
Measurement grade		Level 2
Working pressure		≤1 M Pa
Pressure loss		P63(≤0.063M Pa)
Operating Temp.		Cold water (T30):0.1℃~30℃		Heat water (T30):0.1℃~30℃
Flow profile sensitivity grade		U10,D5
Climate & mechanical environmental safety		Class B
Electromagnetic compatibility level		E1
Communication interface		M-BUS/RS485
Communication protocol		CJ/T188-2004/ DL/T645-2007/Mod-bus
