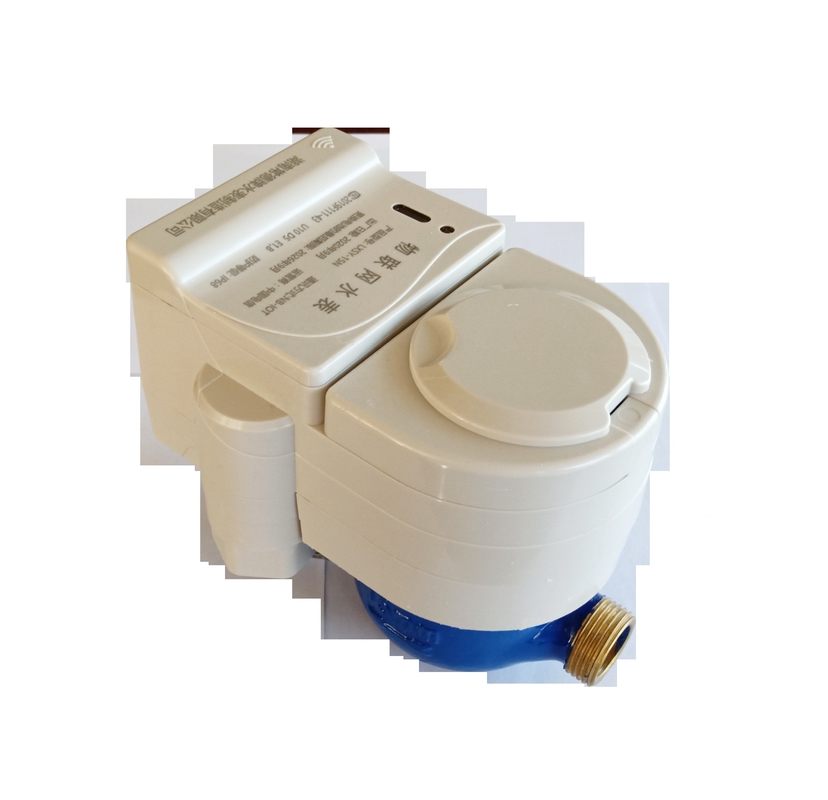

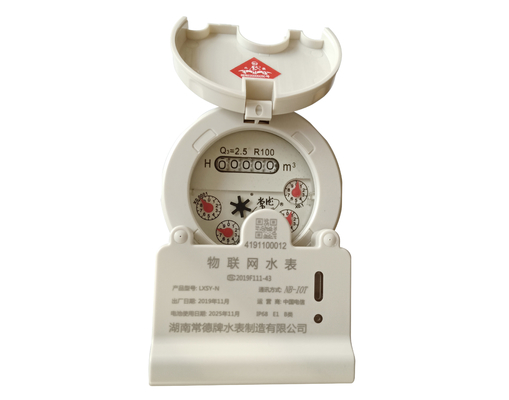

Name: Wireless Automatic Digital Water Meter Domestic LORA Cold Water Flow Meter Remote Reading Horizontal OEM Customizable
Brand: Hunan Changde Water Meter Manufacture Co., Ltd.
SKU: LXSW-15F~32F
Availability: InStock

Home Products LORA,LORAWAN water meter

Wireless Automatic Digital Water Meter Domestic LORA Cold Water Flow Meter Remote Reading Horizontal OEM Customizable

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Changde
Model Number:	LXSW-15F~32F

Contact Now

Detailed Product Description

Warranty:	1 YEAR, 1 Year	Customized Support:	OEM
Type:	Multi-jet Meters	Name:	Domestic LORAWAN Water Meters
Material:	Brass,CAST IRON	Type Name:	Wireless Transmission Remote Reading Cold Water Meter
Certificate:	ISO4064 ISO9001:2015	Installation:	Horizontal
Water Temperature:	≤30℃	Working Pressure:	≤1MPa
Normal Size:	15mm~32mm	Frequency Range:	470-510Mhz

Wireless remote reading domestic water meters digital cold water flow meter

Product Description

Adopting wireless radio frequency technology, integrated micro-power multi channel embedded wireless module, the realization of the various parts of the wireless data transmission. The water can be used to realize remote measurement and storage, copy control, and can automatically detect the battery status, operation status and other information, support the price ladder. No difficulty in construction, also it has the advantages of cost saving, simple operation and convenient maintenance.

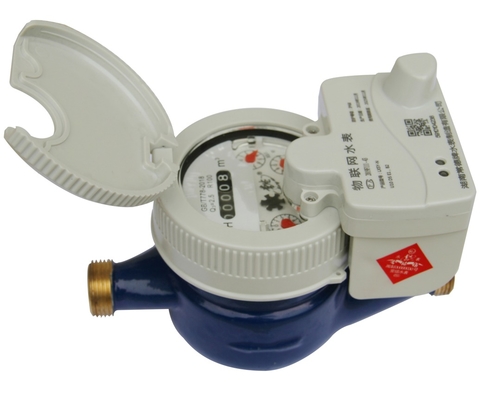

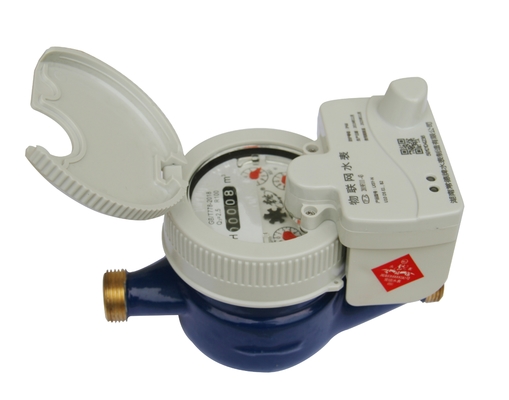

Wireless remote valve water meter (Brass valve)

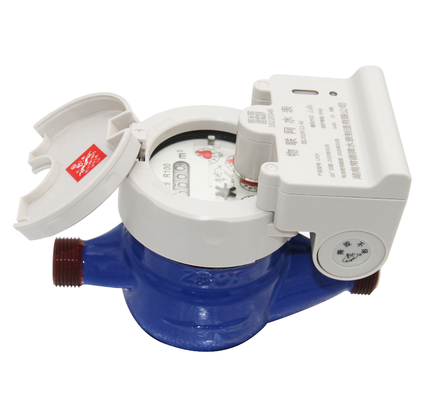

Mechanical & electrical separation wireless remote water meter (cast iron)

Diameter (DN)	High		Width	Length	Connection Thread
Diameter (DN)	H1	H2	W	L	d	D
15	119	144	88	165	R1/2	G3/4B
20	119	144	88	195	R3/4	G1B
25	119	144	88	225	R1	G1 1/4B

Main Tech. Parameters

Diameter(DN)mm	15		20		25
Overload flow rate (Q4)m³/h	3.125		5		7.785
Normal flow rate (Q3)m³/h	2.5		4		6.3
Transitional flow rate (Q2)m³/h	0.05/0.04		0.08/0.064		0.126/0.1
Min. flow rate (Q1)m³/h	0.032/0.025		0.05/0.04		0.078/0.063
Measure Range(Q3/Q1)		80/100
Measurement grade		Level 2
Working GHz		470-510Mhz
Working pressure		≤1 M Pa
Pressure loss		≤0.063M Pa
Operating Temp.		Cold water (T30):0.1℃~30℃		Heat water (T90):0.1℃~90℃
Flow profile sensitivity grade		U10,D5
Climate & mechanical environmental safety		Class B
Electromagnetic compatibility level		E1
Quiescent current		≤25uA
Working Voltage		3.6V lithium battery
Waterproof Level		IP68
