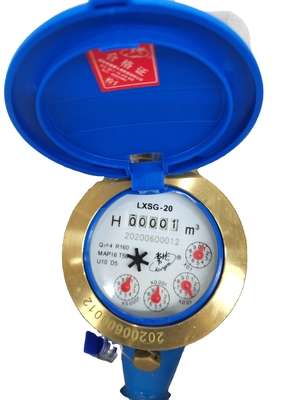

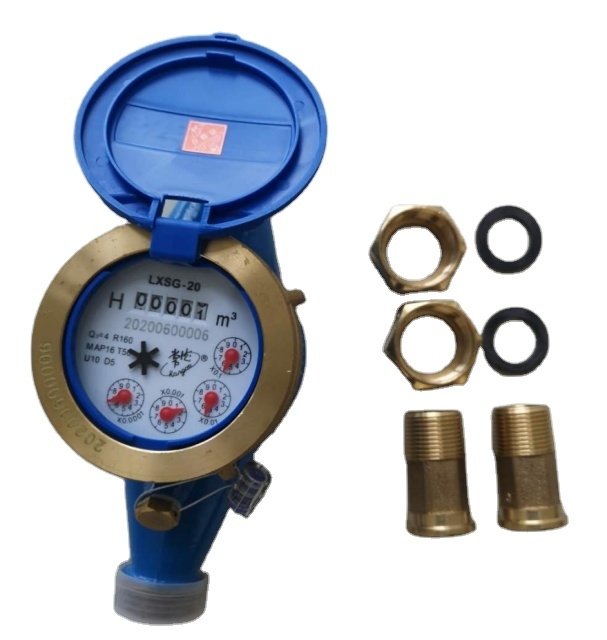

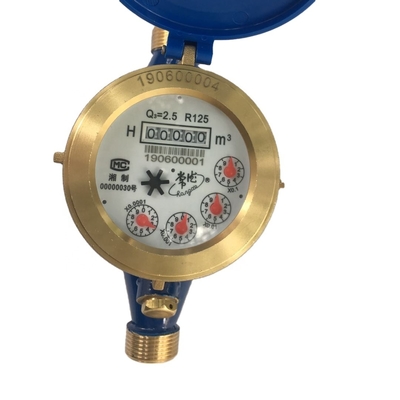

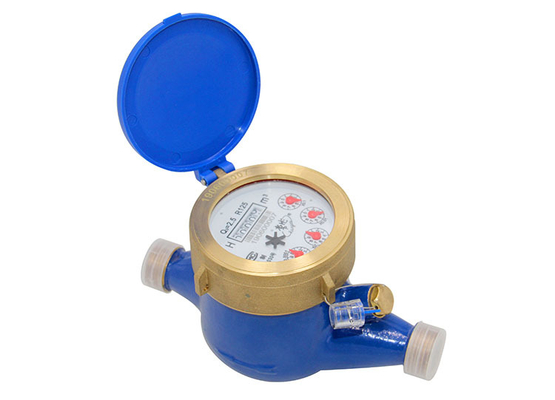

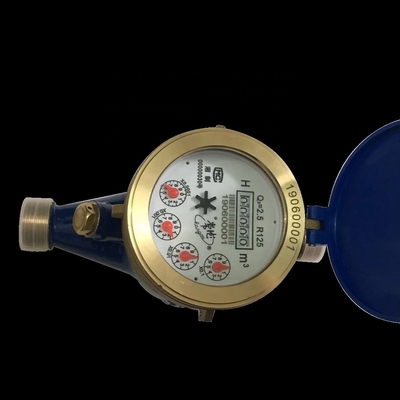

Name: Multi Jet Residential Dry Type Cold Water Meter DN20 Conventional Water Meter
Brand: Hunan Changde Water Meter Manufacture Co., Ltd.
SKU: LXSG-15-50
Availability: InStock

Home Products Multi jet water meter

Multi Jet Residential Dry Type Cold Water Meter DN20 Conventional Water Meter

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Changde Brand
Model Number:	LXSG-15-50

Contact Now

Detailed Product Description

Warranty:	1 Year, 1 Year	Customized Support:	OEM
Type:	Multi-jet Meters	Name:	Dry Dial Class B Watermeter
Material:	Brass	Type Name:	Vane Wheel Cold Water Meter
Certificate:	ISO4064 ISO9001:2008	Installation:	Horizontal
Water Temperature:	≤30℃	Working Pressure:	≤1MPa
Normal Size:	15mm~25mm

small size multi jet 15 mm -20 mm residential brass dry type cold water meter

Product Description

Brief introduction:

The dry dial water meter is mainly composed of a meter case, a cover, a counting mechanism, a measuring mechanism, etc. The counting mechanism and impeller are completely isolated by magnetic transmission, and the reading part of the wheel is dry and keeps the reading part clear for a long time by using water.Anti-fog, anti-fouling and other characteristics.

Characteristic:

High accuracy, accurate measurement, convenient maintenance, technical index up to GB/T778.1~3-2007 standard, dry counter and measured water can keep the indication clear for a long time.

Special Features

Name:	Dry dial class B Water meter
Material:	Iron
Type name	Vane wheel cold water meter
Certificate	ISO4064 ISO9001:2008
warranty	1 year
Installation	Horizontal
Water temperature	≤30℃
Working pressure	≤1MPa
Normal Size	15mm~50mm

Dimensions and weight

Technical Data

Diameter (DN)	Q max (Q₄)	Q n (Q₃)	Qt(Q₂) Q₂/Q₁=1.6 m³/h				Q min(Q₁) Specific value Q₃/Q₁ m³/h				Min. seale mark	Max.reading
Diameter (DN)	Q₄/Q₃=1.25 m³/h		R80	R100	R125	R160	R80	R100	R125	R160	m³	m³
15	3.125	2.5	0.05	0.04	0.032	0.025	0.032	0.025	0.02	0.016	0.00005	99999
20	5	4	0.08	0.064	0.05	0.04	0.05	0.04	0.032	0.025	0.00005	99999
25	7.875	6.3	0.126	0.1	0.08	0.063	0.08	0.063	0.5	0.4	0.00005	99999
32	12.5	10	0.2	0.16	0.125	0.1	0.125	0.1	0.08	0.063	0.00005	99999
40	20	16	0.32	0.256	0.2048	0.16	0.2	0.16	0.128	0.1	0.00005	99999
50	31.25	25	0.5	0.4	0.32	0.25	0.3125	0.25	0.2	0.156	0.00005	99999
