1/2 Inch DN15 15MM CLASS C R160 Plastic Multi Jet Dry Dial Cold Water Meter Customized OEM Horizontal Installation-T30 T50

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Changde Brand
Model Number:	LXSG-15-50

Contact Now

Detailed Product Description

Warranty:	1 Year, 1 Year	Customized Support:	OEM
Flow Rate:	2.5	Measurement Range:	R160
Type:	Multi-jet Meters	Connectivity:	Threaded
Protection Class:	Ip68	Name:	CLASS C R160 Plastic Multi Jet Dry Dial Cold Water Meter
Material:	Plastic Nylon	Certificate:	ISO4064 ISO9001:2008
Installation:	Horizontal	Water Temperature:	≤30℃
Working Pressure:	≤1MPa	Normal Size:	15mm~25mm
Stype:	Dry Type

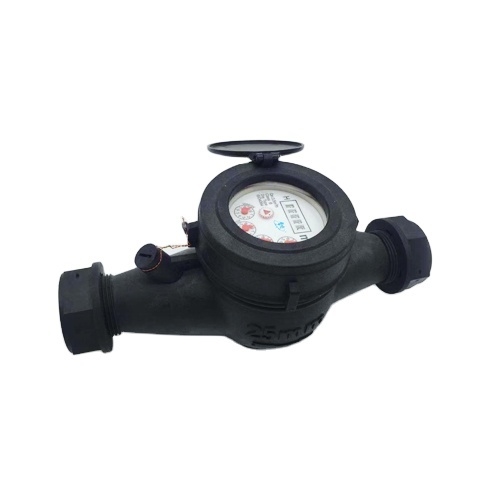

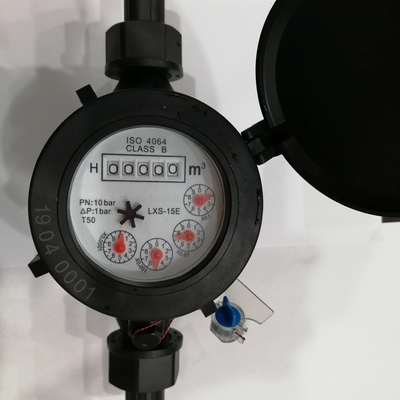

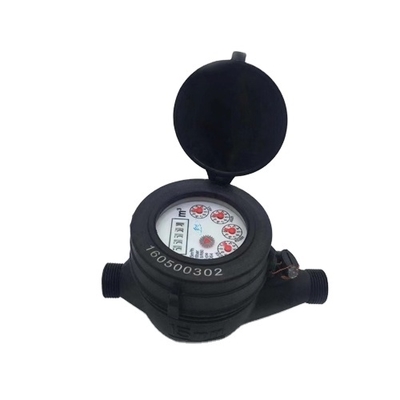

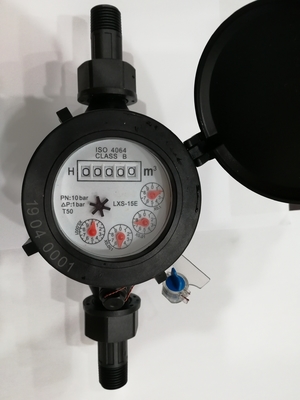

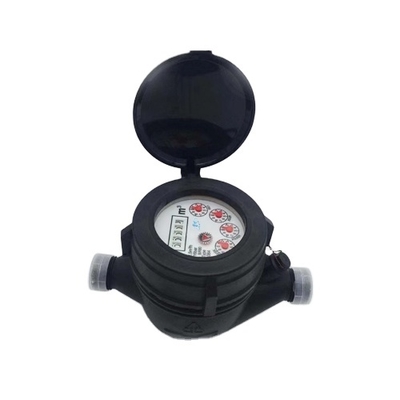

1/2 inch CLASS C Multi jet dry dial plastic water meter

Product Description

Brief introduction:

The dry dial water meter is mainly composed of a meter case, a cover, a counting mechanism, a measuring mechanism, etc. The counting mechanism and impeller are completely isolated by magnetic transmission, and the reading part of the wheel is dry and keeps the reading part clear for a long time by using water.Anti-fog, anti-fouling and other characteristics.

Characteristic:

High accuracy, accurate measurement, convenient maintenance, technical index up to GB/T778.1~3-2007 standard, dry counter and measured water can keep the indication clear for a long time.

Special Features

Name:	Dry dial class B Water meter
Material:	Iron
Type name	Vane wheel cold water meter
Certificate	ISO4064 ISO9001:2008
warranty	1 year
Installation	Horizontal
Water temperature	≤30℃
Working pressure	≤1MPa
Normal Size	15mm~50mm

Dimensions and weight

Diameter (DN)	Length (mm)		Width (mm)	Height(mm)	Connection thread		Weight (Kg)
Diameter (DN)	L	L1	B	H	d	D	Weight (Kg)
15	259	165	104	113	R1/2	G3/4 B	0.55
20	299	190	104	113	R3/4	G1 B	0.65
25	345	225	110	124	R1	G1 1/4 B	0.72

Technical Data

Diameter (DN)	Q max (Q₄)	Q n (Q₃)	Qt(Q₂) Q₂/Q₁=1.6 m³/h				Q min(Q₁) Specific value Q₃/Q₁ m³/h				Min. seal mark	Max.reading
Diameter (DN)	Q₄/Q₃=1.25 m³/h		R80	R100	R125	R160	R80	R100	R125	R160	m³	m³
15	3.125	2.5	0.05	0.04	0.032	0.025	0.032	0.025	0.02	0.016	0.00005	99999
20	5	4	0.08	0.064	0.05	0.04	0.05	0.04	0.032	0.025	0.00005	99999
25	7.875	6.3	0.126	0.1	0.08	0.063	0.08	0.063	0.5	0.4	0.00005	99999
