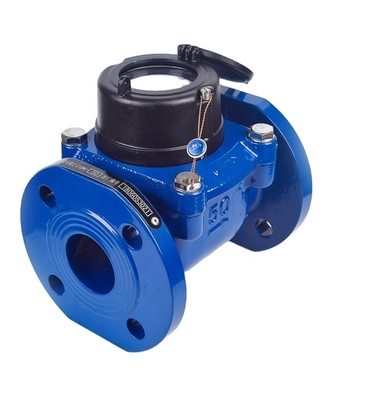

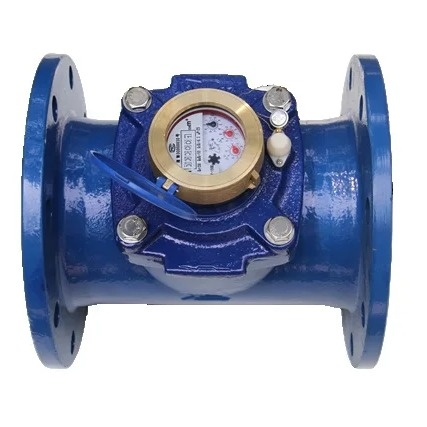

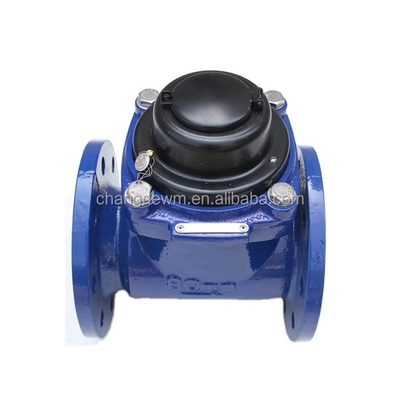

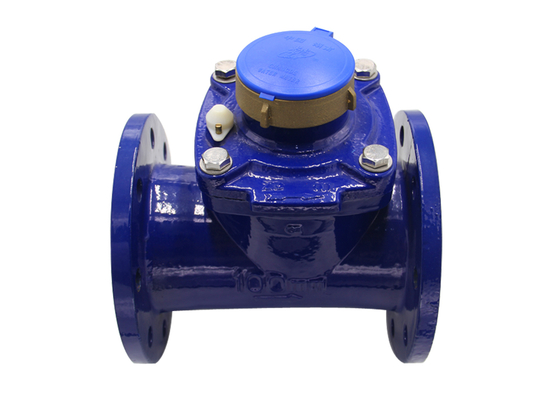

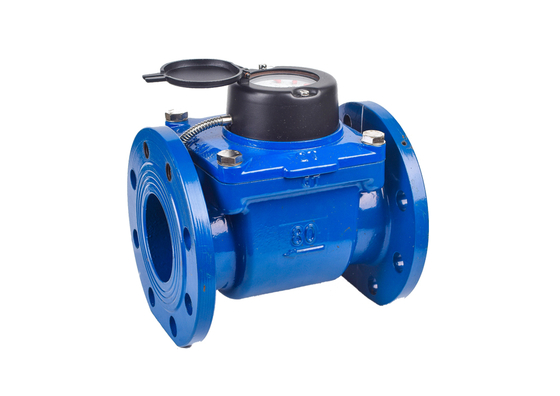

DN80mm~200mm Magnetic Drive Water Meter Removeable Woltman Domestic Water Meter

    DN80mm~200mm magnetic drive water meter removeable woltman domestic water meter

Application

Measuring the volume of cold (hot) water passing through the pipeline

Product Features

l Removable element structure, easy installation and maintenance;

l Dry-dial, Magnetic drive;

l Large flow capacity, small pressure loss;

l Resist water hummer and pollution;

l Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service;

l Selected high quality materials for steady and reliable characteristic;

l Technical data conform to international standard ISO 4064.

Working condition(s)

Water temperature 0.1~40℃, (0.1℃~90℃ for hot water meter)

Working pressure ≤1MPa.(1.6Mpa available)

Accuracy

Low region max. allowable error:  From Q1 inclusive up to but excluding Q2 is±5%.

High region max. allowable error:  From Q2 inclusive up to and including Q4 is±2%  (±3% for hot water meter
