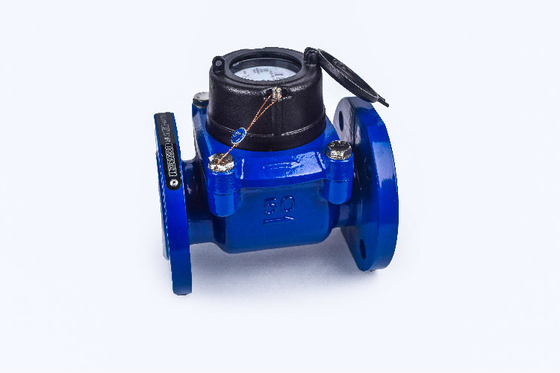

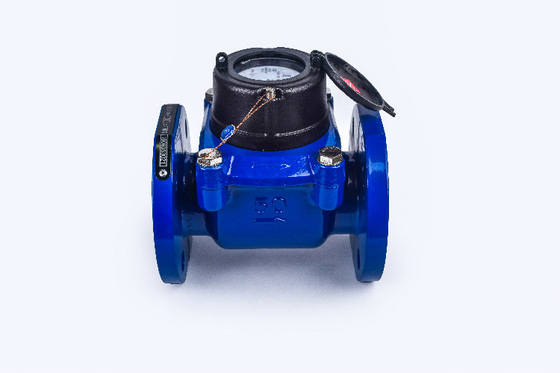

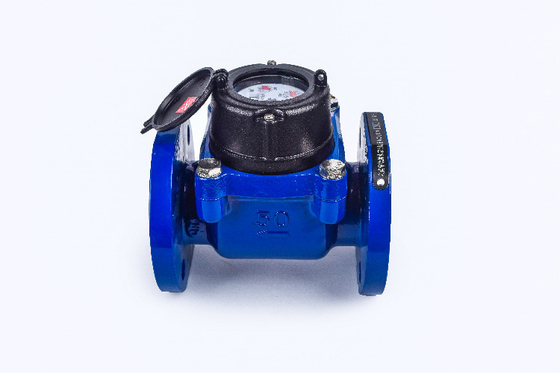

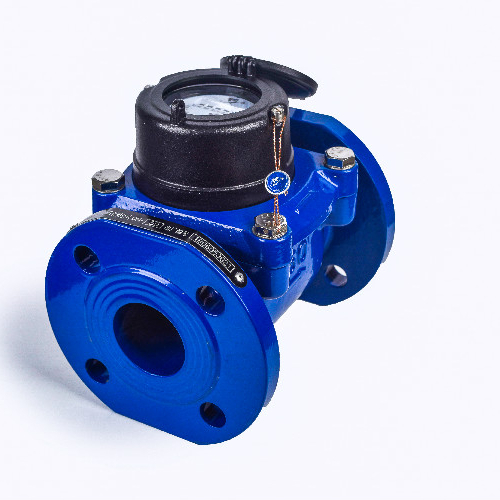

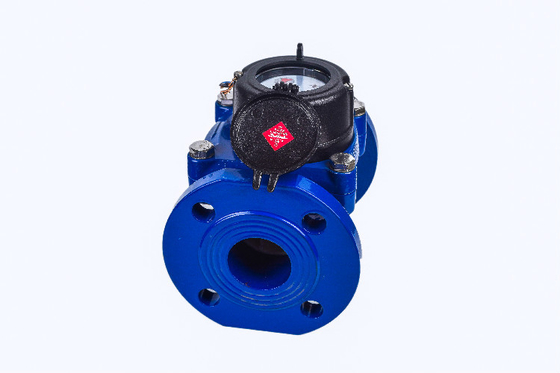

Name: DN 50 - DN 300 Horizontal Dry & Detachable Water Meter Pulse Output Type
Brand: Hunan Changde Water Meter Manufacture Co., Ltd.
SKU: LXSG-WPHW
Availability: InStock

Home Products Woltmann water meter

DN 50 - DN 300 Horizontal Dry & Detachable Water Meter Pulse Output Type

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Changde
Model Number:	LXSG-WPHW

Contact Now

Detailed Product Description

Type:	Turbine Meters	Name:	Impulse Output Water Meter
Material:	Iron	Type Name:	Pulse Transmission Cold Water Meter
Certificate:	ISO4064 ISO9001:2008	Warranty:	1 Year
Installation:	Horizontal	Water Temperature:	≤30℃
Working Pressure:	≤1MPa	Normal Size:	40mm~200mm

DN 50 - DN 300 Horizontal dry & detachable water meter pulse Output type

Product Description

1 Maximum contact power 5W;

2 Maximum switching voltage50 VDC;

3 Maximum switching current 0.2A;

4 Pulse constant100imp/m³, 1000imp/m³;

5 Electromechanical conversion error ±1 pulse equivalent;

6 Signal line connection:

Technical Data

Product model		Diameter	Flow rate m³/h						Indication
			Initial flow rate	Overload flow rate (Q4)		Normal flow rate (Q3)	Transitional flow rate (Q2)	Min. flow rate (Q1)	Min Reading (Min)	Max. Reading (Max)
Horizontal Woltman water meter	W P H W	Cold water: R160 Q₂/Q₁=1.6 GB/T 778.1-2007
		200	-		780	630	6.3	3.94	0.005	Dry type: 9999999.99
		250	-		1250	1000	10	6.25
		300	-		2000	1600	20.5	12.8

Shape and Size

Product model		DN	H	L	Removal height>G	Connecting Flange			Weight
		(mm)	(mm)	(mm)		Flange outer diameter	Center circle diameter of bolt hole	Connecting bolt * No.	(kg)
		(mm)	(mm)	(mm)		D	D1	Connecting bolt * No.	(kg)
Horizontal Woltman water meter	W P H W	200	370	350	440	340	295	8(12)*M20	46
		250	422	450	460	395/405	350/335	12*M20	71.4
		300	478	500	485	445/460	400/410	12*M20	91.5
