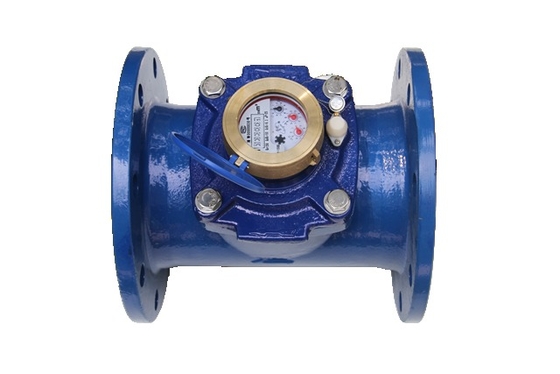

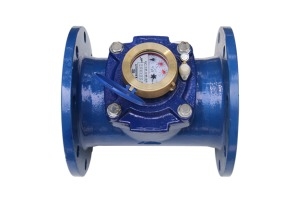

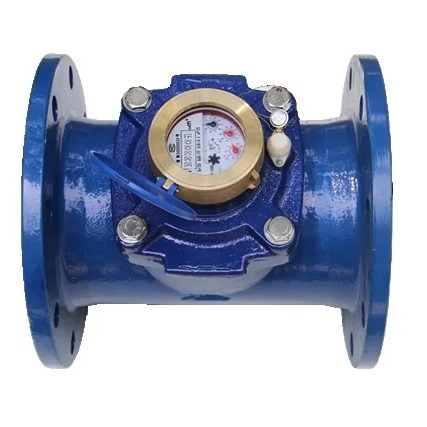

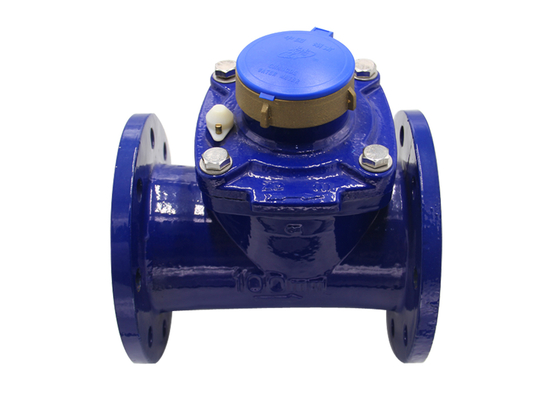

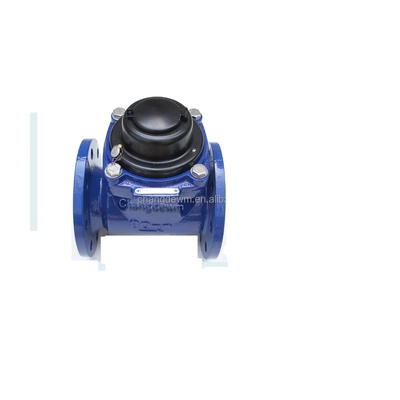

LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter

LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter

  • LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter
  • LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter
  • LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter
  • LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter
  • LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter
  • LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter
  • LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter
LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter
Product Details:
Place of Origin: Hunan, China
Brand Name: Changde
Certification: ISO4064
Model Number: LXL-80E-400E
Contact Now
Detailed Product Description
Warranty: 1 YEAR, 1 Year Customized Support: OEM
Type: Turbine Meters Name: LXL-80E-400E Horizontal Installation Wet Dial Irrigation Water Meter
Material: Cast Iron Type Name: Horizontal Woltman Cold Water Meter
Certificate: ISO4064 ISO9001:2008 Installation: Horizontal
Water Temperature: ≤30℃ Working Pressure: ≤1MPa
Normal Size: 80mm~400mm

Specification of Mechanical water meters



1, Horizontal cold water meter(LXL-80E-400E) Irrigation water meter

Brief introduction:

Horizontal spiral cold water meter is mainly composed of a meter case, a cover, a mechanism counting, a metering mechanism. The counting mechanism adopts the form of liquid seal, water on the surface of semi-liquid sealed water meter, the reading part of the wheel is sealed with the anti-corrosive liquid and separated from the use of water for a long time to keep the reading part clear. The sealing liquid has the characteristics of anti-freezing, anti-fog and anti-fouling, etc..

Characteristic:

Wide measuring range, accurate measurement, large circulation capacity, small pressure loss, technical index up to GB/T778.1~3-2007 standard, strong structure. Long service life, The separation energy of liquid seal series counter and measured water can keep the indication clear for a long time, High quality anti-corrosion and anti-fouling material used for parts in contact with water, DN50 and above use flange connection (iron shell).



The interchangeable, removable measuring mechanism can be easy removed from the body for checking, maintaining and replacing, no needs to dismantle the body form the pipe;



Working condition(s):

Water temperature 0.1~30℃, working pressure ≤1MPa.



Shape dimension & weight:

Diameter(DN)

Length

(mm)

Height(mm)

Flange outer diameter (mm)

Center circle diameter of bolt hole

Connecting bolt * No.

Weight(Kg)

L

H

D

d

40

200

195

150

110

M16*4

12

50

200

200

165

125

M16*4

12

65

200

210

185

145

M16*4

12

80

225

265

200

160

M16*8

15

100

250

275

220

180

M16*8

18

150

300

305

285

240

M20*8

31

200

350

390

340

295

M20*8

46

300

450

475

445

400

M20*12

97

400

550

600

560

515

M24*16

140

 LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter 0



Allowable error of indication & error Curve:

Low region max. allowable error:

From Q min inclusive up to but excluding Qt is±5%.

High region max. allowable error:

From Qt inclusive up to and including Q max is±2%.



LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter 2

LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter 4LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter 6LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter 8LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter 10LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter 12LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter 14LXL-80E-400E Wet Dial Woltmann Horizontal Cast Iron Irrigation Meter OEM Customizable Cold Water Meter 16
