RF IC Card Brass Prepaid Smart Water Meter Manufacturer

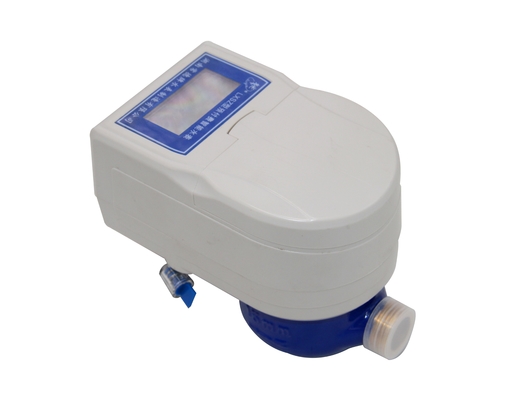

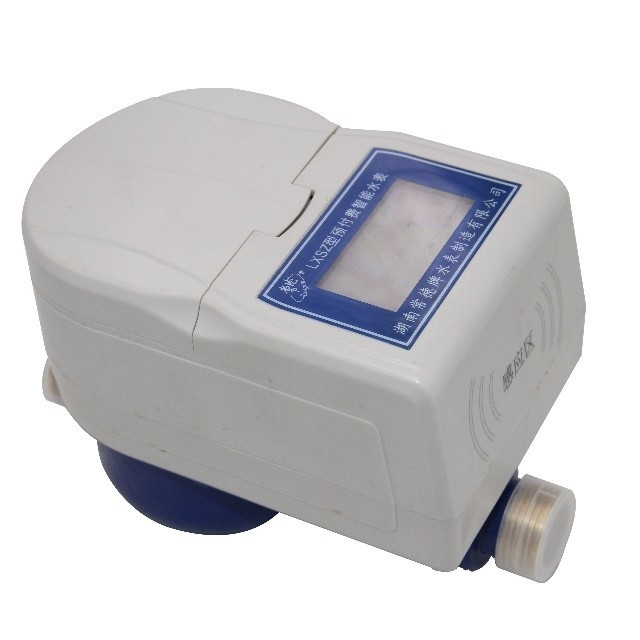

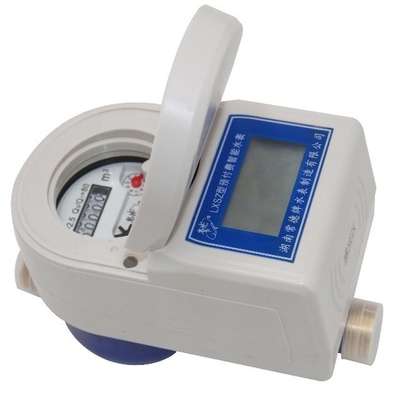

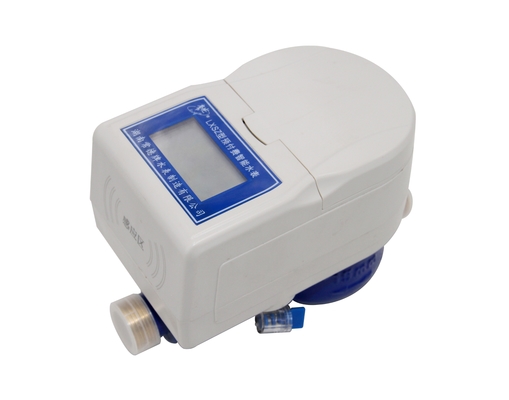

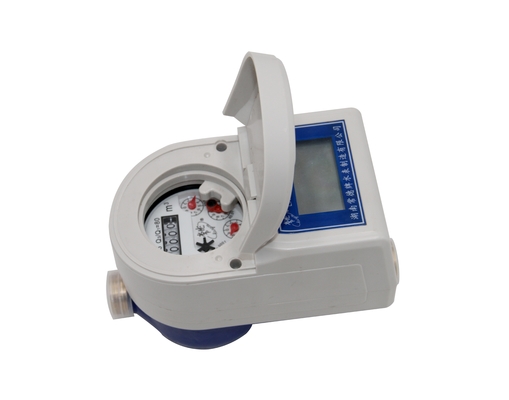

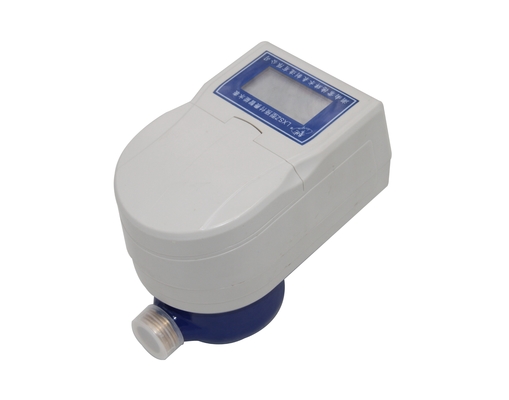

 RF IC card brass prepaid smart water meter

Changde brand contact-less IC card water meter as a data carrier, automatic charging function, the management will write user’s pay fees into IC card, brush into the data and accounting surplus water meter automatic water supply capacity, valves control will be closed after used up of water, can be used after buying. This type water meter are widely used in various parts of the country.

Product Features:

All copper base meter: stable metering performance, no rust safety and hygiene, clear reading;

IP68 waterproof grade: adopt structural seal design, seal performance reaches IP68, can work normally in wet environment;

Contact-less IC card: wireless self-seeking card technology, wireless transmission of data, safe and reliable;

Step water price function: support monthly, annual price, user card update ladder water price parameters;

Valve maintenance function: timing switch valve, prevent valve scaling;

Abnormal valve function: detection of battery power down, low voltage, sensor fault automatically turn off the valve, liquid crystal screen display failure code;

Battery replacement function: the user can replace the battery by himself and brush the user card opening valve after replacing the battery;

Data retrieval function: the user card can bring back the water information and status word in the meter;

Disconnection valve function: after unplugging the communication cable, the valve automatically closes (split card meter)

Support real-time charging network, set up a number of charging sites, users can pay in the latest toll site. At the same time, can provide interface functions, seamless docking with third parties;

The client supports the online upgrade function. After the charging computer is connected, the user can update the client charging system through the remote server when the software starts;

Blacklist query function: query abnormal payment of customers, easy to management audit;

Property fee collection function: according to the area or time to collect property fees;

Custom invoice format: customers can customize the bill format according to their own needs.

Permission setting function: assign, set the administrator's permission, easy to manage the system.

Main Tech. Parameters

 Shape & Size

                                                  DN15~DN25 (Horizontal integral type)

outline dimension (mm)          Horizontal integral type

                                                       DN15~DN25  (Vertical integral type)

    outline dimension (mm)       Vertical integral type

 DN32~DN200(Horizontal split type)

outline dimension(mm)       Horizontal split type
