Place of Origin: | Hunan, China |
Brand Name: | Changde |
Model Number: | LXLY-15-25 |
Warranty: | 1 Year, 1 Year | Customized Support: | OEM |
---|---|---|---|
Type: | Multi-jet Meters | Name: | GPRS WATER METER |
Material: | Brass | Type Name: | Photoelectric Direct Reading Remote Reading Water Meter |
Certificate: | ISO4064 ISO9001:2008 | Installation: | Horizontal |
Water Temperature: | ≤30℃ | Working Pressure: | ≤1MPa |
Normal Size: | 15mm~25mm |

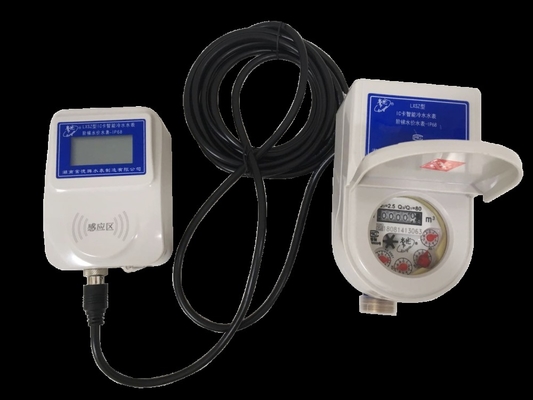

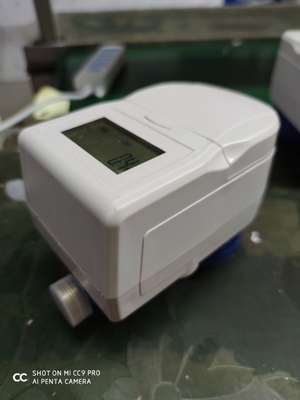

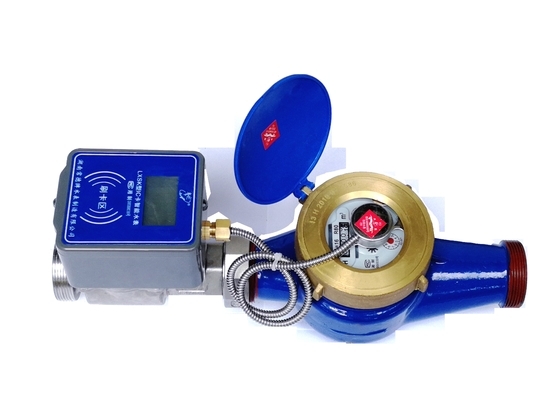

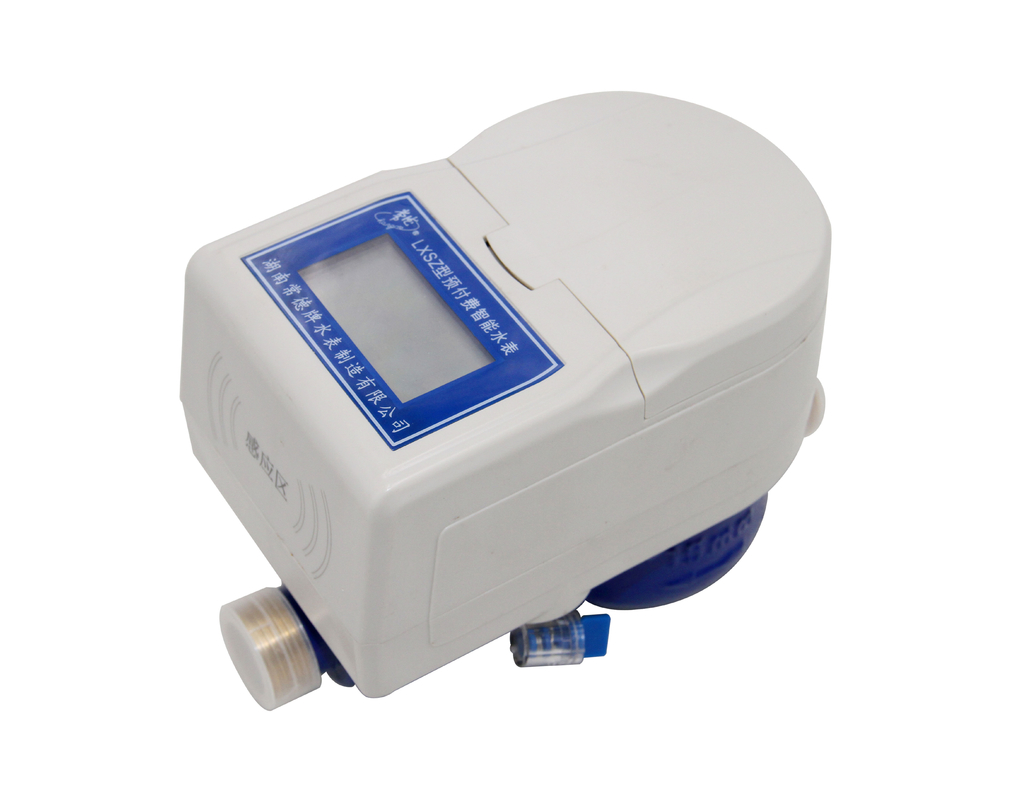

Prepaid smart water meter with vending system
LXSZ -15-200
Prepaid IC card water meter system consists of four parts, they are prepaid water meter, RF card, card reader, prepaid management system.
Product Features:
All copper base meter: stable metering performance, no rust safety and hygiene, clear reading;
IP68 waterproof grade: adopt structural seal design, seal performance reaches IP68, can work normally in wet environment;

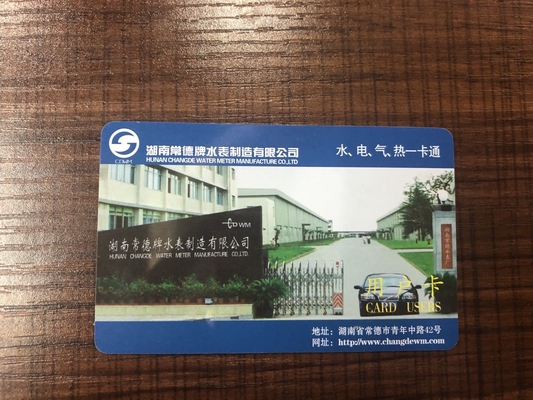

Contact-less IC card: wireless self-seeking card technology, wireless transmission of data, safe and reliable;
Step water price function: support monthly, annual price, user card update ladder water price parameters;
Valve maintenance function: timing switch valve, prevent valve scaling;
Abnormal valve function: detection of battery power down, low voltage, sensor fault automatically turn off the valve, liquid crystal screen display failure code;
Battery replacement function: the user can replace the battery by himself and brush the user card opening valve after replacing the battery;
Shape dimension & weight:
Diameter DN |
Length |
Width |
High |
Thread D |
15 |
165 |
91 |
121 |
G3/4B |
20 |
195 |
91 |
121 |
G1B |
25 |
225 |
91 |
121 |
G5/4B |
Accuracy:
Low region max. allowable error:
From Q min inclusive up to but excluding Qt is±5%.
High region max. allowable error:
From Qt inclusive up to and including Q max is±2%.
