Place of Origin: | Hunan, China |
Brand Name: | Changde |
Model Number: | LXSY-15/25-NK |
Warranty: | 1 Year, 1 Year | Customized Support: | OEM |
---|---|---|---|
Type: | Multi-jet Meters | Name: | Wireless Remote Reading Water Meter |
Material: | Cast Iron | Type Name: | NB-IOT Module For Water Meter |
Certificate: | ISO4064 ISO9001:2008 | Installation: | Horizontal |
Water Temperature: | ≤30℃ | Working Pressure: | ≤1MPa |
Normal Size: | 15mm~25mm |

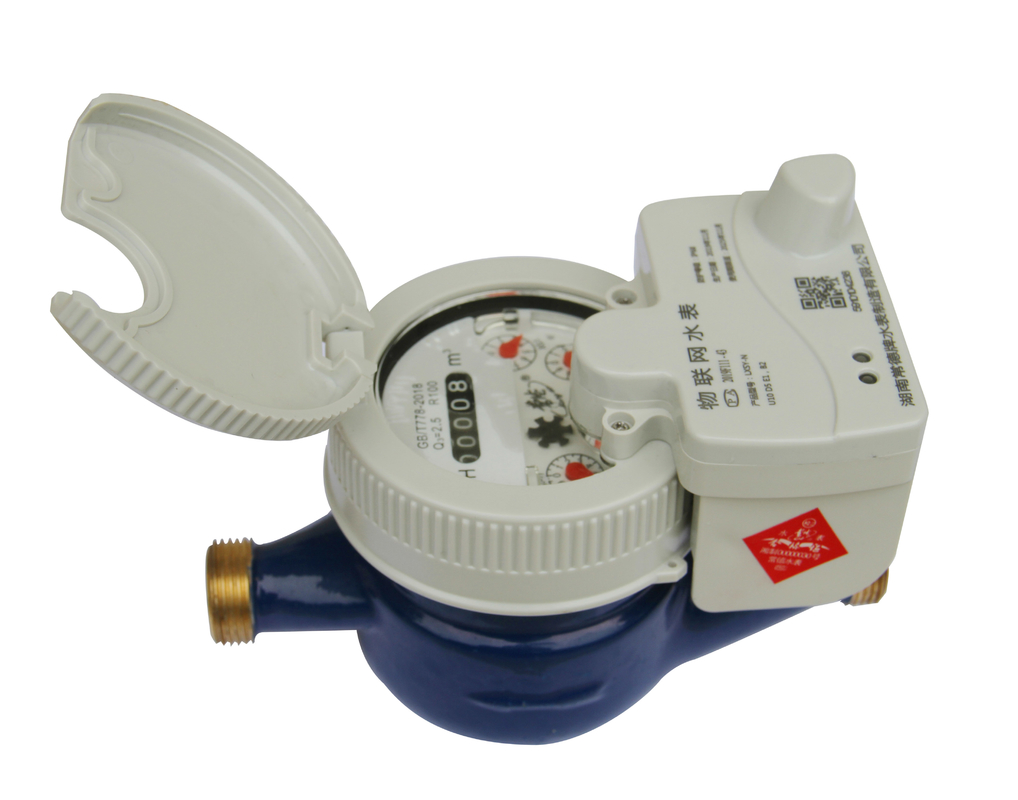

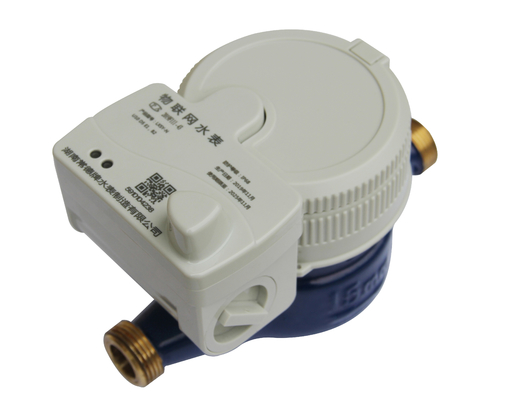

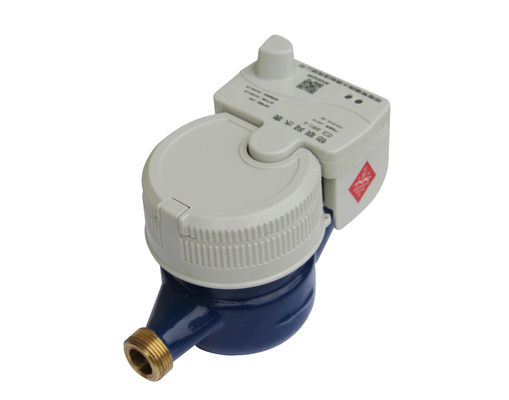

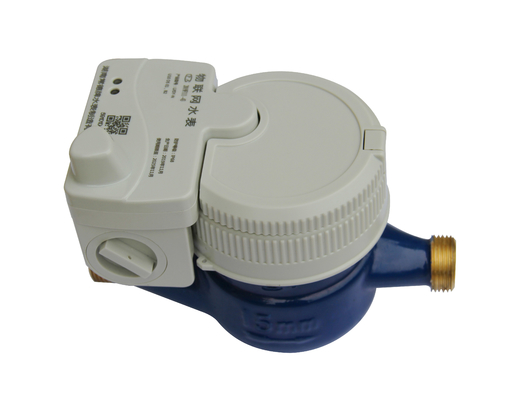

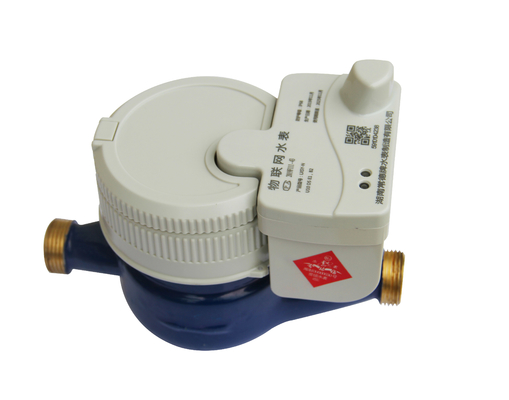

NB-IOT Wireless smart reading with valve cold Water Meterer
Model: LXSY-15/25-NK
Product Features:
Transmit through NB-IoT private network, safe and stable
Easy maintenance & replacement, adopts electrical & mechanical separation structure design
Double protection with integral structure seal and glue filling seal
Built-in high-capacity lithium battery, battery life is more than 6 years
Remote setting function set up data upload time and interval remotely
Name: |
Wireless Remote Reading cold Water Meter |
Material: |
cast iron |
Type name |
Photoelectric direct reading remote reading water meter |
Certificate |
ISO4064 ISO9001:2008 |
warranty |
1 year |
Installation |
Horizontal |
Water temperature |
30℃ |
Working pressure |
1MPa |
Normal Size |
15mm~25mm |
Dimensions and weight
Diameter (DN) |
Length (mm) |
Width (mm) |
High (mm) |
Connection thread |
Weight |
||
L |
L1 |
W |
H |
d |
D |
KG |
|
15 |
258 |
165 |
105 |
130 |
R1/2 |
G3/4 B |
1.5 |
20 |
299 |
195 |
105 |
130 |
R3/4 |
G1 B |
1.7 |
25 |
345 |
225 |
105 |
130 |
G1-1/2B |
G1 1/4 B |
2.2 |
