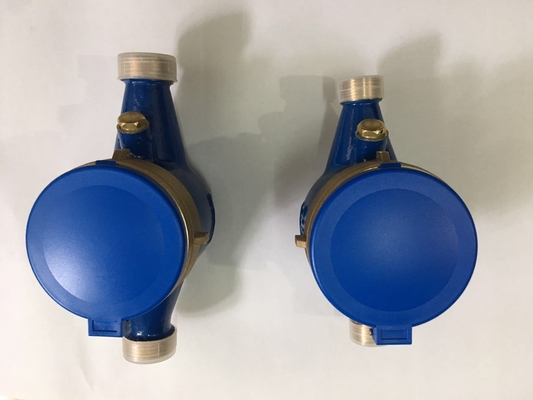

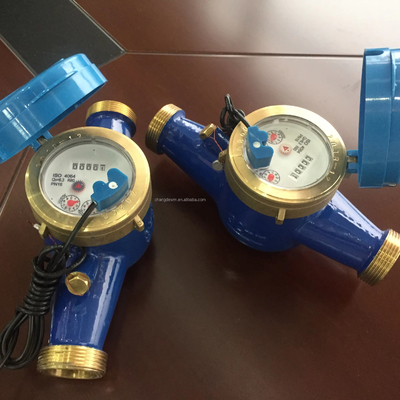

Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price

Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price

  • Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price
  • Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price
  • Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price
  • Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price
  • Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price
  • Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price
Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price
Product Details:
Place of Origin: Hunan, China
Brand Name: Changde
Model Number: LXS-15E~25E
Contact Now
Detailed Product Description
Warranty: 1 Year, 1 Year Customized Support: OEM
Flow Rate: 2.5 Measurement Range: R100
Type: Multi-jet Meters Connectivity: Threaded
Protection Class: Ip68 Type Name: Vane Wheel Cold Water Meter
Certificate: ISO4064 ISO9001:2008 Factory Certifcation: ISO9001
Water Temperature: ≤30℃ Normal Pressure: ≤1Mpa
Normal Size: 15mm~25mm Installation: Horizontal

ISO4064 multi jet brass body dry dial R125 water meter with external adjustment

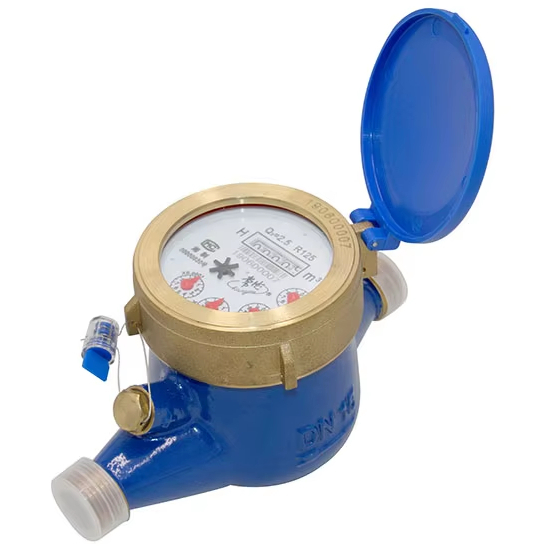

Dry dial water meter(LXSG-15-50)



Brief introduction:

The dry dial water meter is mainly composed of a meter case, a cover, a counting mechanism, a measuring mechanism, etc. The counting mechanism and impeller are completely isolated by magnetic transmission, and the reading part of the wheel is dry and keeps the reading part clear for a long time by using water.Anti-fog, anti-fouling and other characteristics.



Characteristic:

High accuracy, accurate measurement, convenient maintenance, technical index up to ISO4064 standard, dry counter and measured water can keep the indication clear for a long time, and water contact parts are made of high quality anti-corrosion and anti-fouling material to make standard pipe thread.Can be installed with wireless and wired remote transmission function, the realization of remote meter reading intelligent metering terminal.



Working condition(s):

Water temperature 0.1~30℃(50 for option)

Working pressure≤1.0MPa.(1.6Mpa for option)



Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price 0

Product Description

 Special Features

Name:

domestic water meter

Material:

Iron

Type name

Vane wheel cold water meter

Certificate

ISO4064 ISO9001:2008

warranty

 1 year

Installation

Horizontal

Water temperature

≤30

Working pressure

≤1MPa

Normal Size

15mm~25mm

Dimensions and weight

Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price 2

Technical Data

Main Technical Date

Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price 4



 Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price 6



 Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price 8Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price 10Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price 12Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price 14Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price 16Factory Direct Sale High Quality Brass Body Domestic Water Meter Horizontal Installation OEM Support Pulse Output Good Price 18
