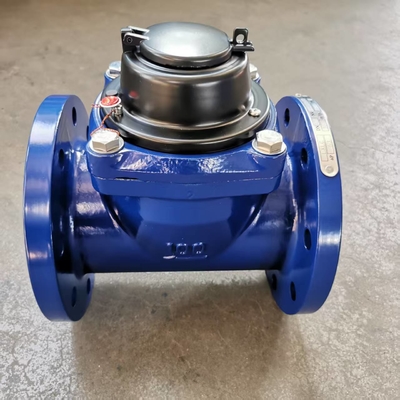

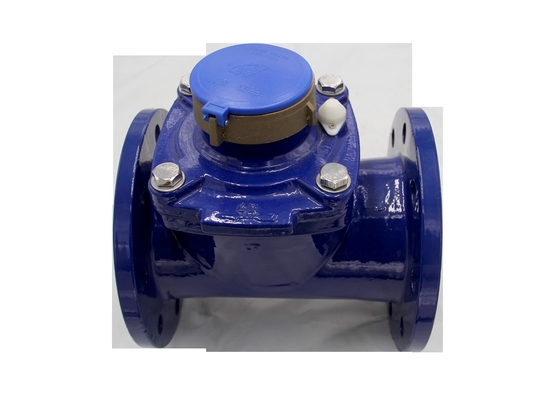

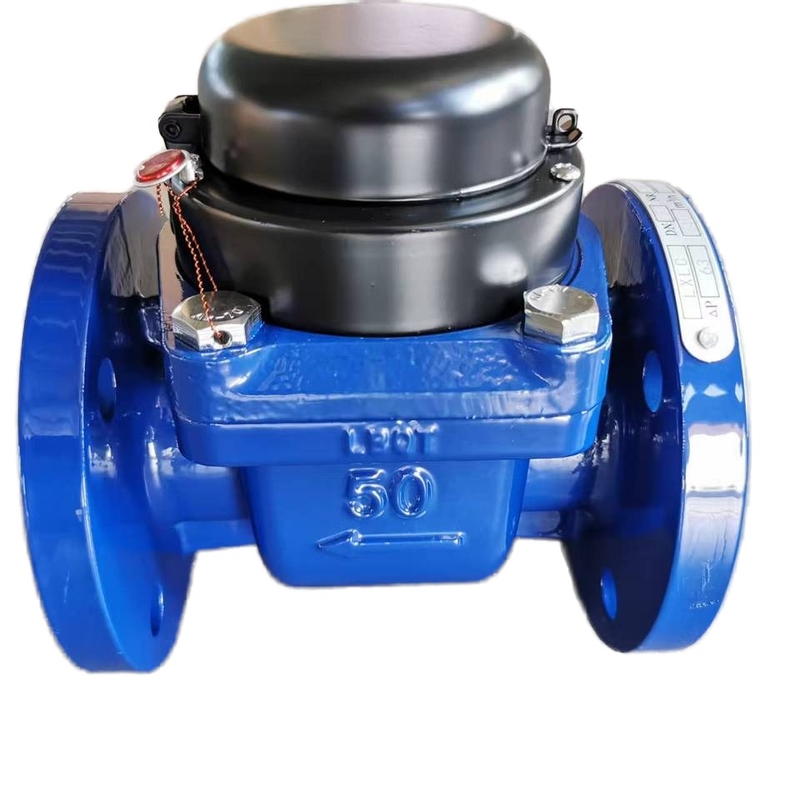

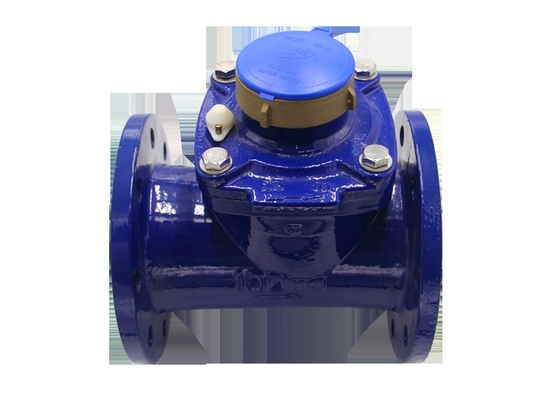

4 Inch to 8 Inch Horizontal Woltmann Dry Type Detachable Measuring Unit Industry Cold Water Meter

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Changde
Model Number:	LXLG-40-200

Contact Now

Detailed Product Description

Warranty:	1 Year, 1 Year	Customized Support:	OEM, ODM
Flow Rate:	40-1600m3/h	Measurement Range:	R25 R50 R80
Type:	Turbine Meters, Woltmann Water Meter	Connectivity:	FLANGED
Protection Class:	Ip68	Product Name:	Horizontal Woltmann Dry Type Detachable Measuring Unit Water Meter
Certificate:	ISO4064 ISO9001:2008	Installation:	Horizontal
Water Temperature:	≤30℃	Working Pressure:	≤1MPa
Normal Size:	40mm~200mm	Material:	CAST IRON

4 inch to 8 inch dry detachable industry water meter

Product Description

1 Maximum contact power 5W;

2 Maximum switching voltage50 VDC;

3 Maximum switching current 0.2A;

4 Pulse constant100imp/m³, 1000imp/m³;

5 Electromechanical conversion error ±1 pulse equivalent;

6 Signal line connection:

Dimensions and weight

Technical Data

Product model		Diameter	Flow rate m³/h						Indication
Product model		Diameter	Initial flow rate	Overload flow rate (Q4)		Normal flow rate (Q3)	Transitional flow rate (Q2)	Min. flow rate (Q1)	Min Reading (Min)	Max. Reading (Max)
Horizontal Woltman water meter	W P H	Cold water: R80 Q₂/Q₁=6.3 GB/T 778.1-2007 Heat water: R50 Q₂/Q₁=6.3 GB/T 778.1-2007 0.0005								Dry type: 999999.999
		40	-		50/31	40/25	3.15	0.5	0.001
		50	-		50/31	40/25	3.15	0.5
		65	-		80/50	63/40	5.0	0.79
		80	-		125/78	100/63	7.90	1.25
		100	-		200/125	160/100	12.6	2.0
		125	-		312/200	250/160	19.7	3.12
		150	-		500/312	400/250	31.5	5.0	0.01
		200	-		780/500	630/400	50.4	8.0	0.01
