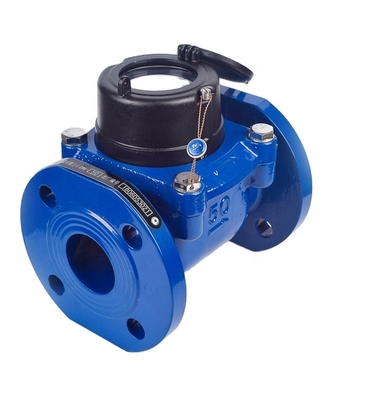

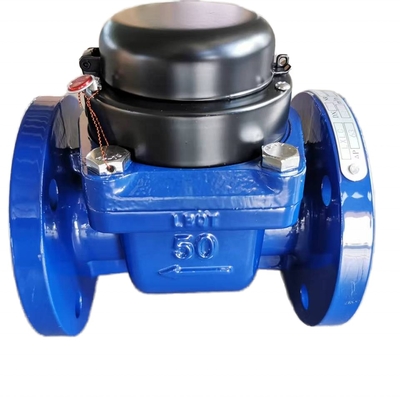

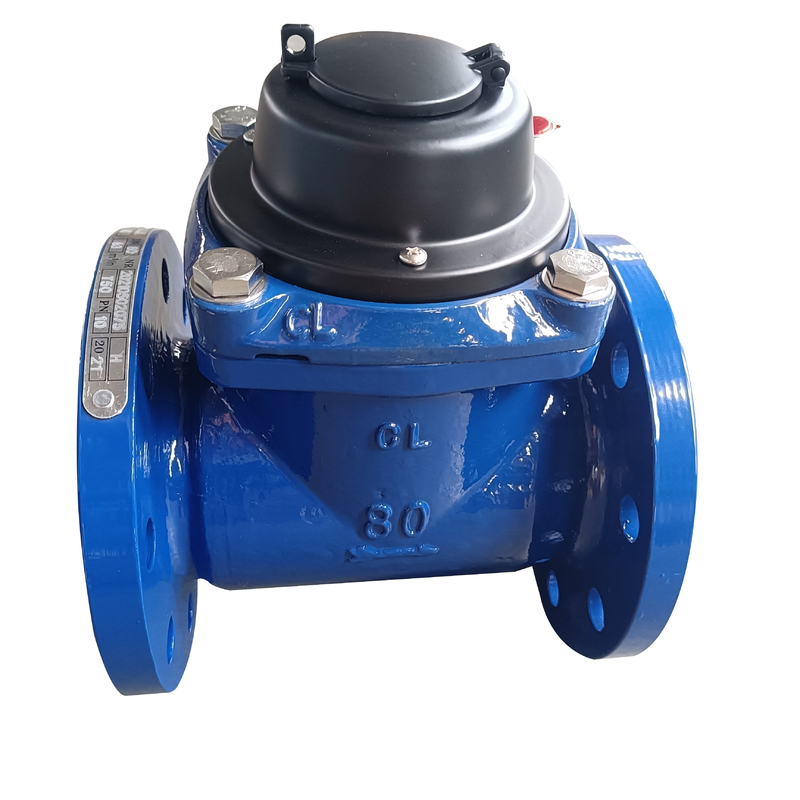

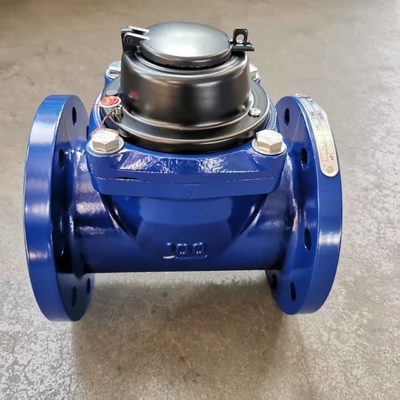

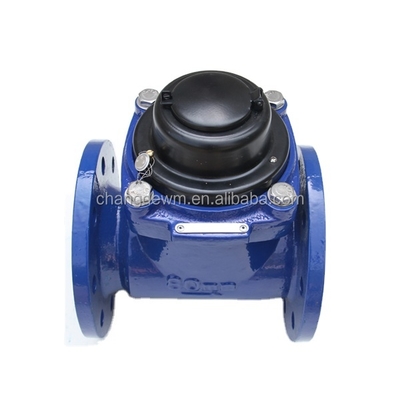

Horizontal woltman dry & detachable type cold water meter(LXLG-40~400)
Brief introduction:
Horizontal woltman dry & detachable type cold water meter is mainly composed of a meter case, a cover, a mechanism
counting, a metering mechanism. The metering mechanism and the counting mechanism adopt the form of magnetic
transmission, the counting mechanism is partially vacuum sealed, the interior is completely isolated from the outside, and it
has the characteristics of anti-freezing, anti-fog and anti-fouling.
Characteristic:
Wide measuring range, accurate measurement, large circulation capacity, small pressure loss, replaceable machine
movements, convenient dis-assembly and assembly, technical index up to GB/T778.1~3-2007 standard, strong structure. Long
service life, The counter adopts vacuum seal, can keep the indication value clear for a long time, high quality anti-corrosion
and anti-fouling material used for parts in contact with water, DN50 with flange connection (iron shell).
The interchangeable, removable measuring mechanism can be easy removed from the body for checking, maintaining and
replacing, no needs to dismantle the body form the pipe;
Product Features
Dry type, magnetic transmission
Removable insert, easy maintenance
Pulse output option
Working condition(s)
Water temperature 0.1~30℃, Working pressure ≤1MPa.(1.6Mpa available)
Accuracy
Low region max. allowable error: From Q1 inclusive up to but excluding Q2 is ± 5%.
High region max. allowable error: From Q2 inclusive up to and including Q 4 is ± 2%
